Overview
In the picturesque heartland of Brackley, South Northamptonshire, March Projects takes pride in presenting the recently completed Newbottle Estate Grain Store project. This innovative development underscores our commitment to excellence in agricultural infrastructure, providing a state of the art storage solution tailored to the evolving needs of modern farming. The Newbottle Estate, a beacon of agricultural heritage and innovation, has always strived to blend tradition with cutting edge agricultural practices. Their dedication to sustainability and efficiency is reflected in every aspect of their operations, as demonstrated by their latest venture with our team at March Projects.
Project Specifications

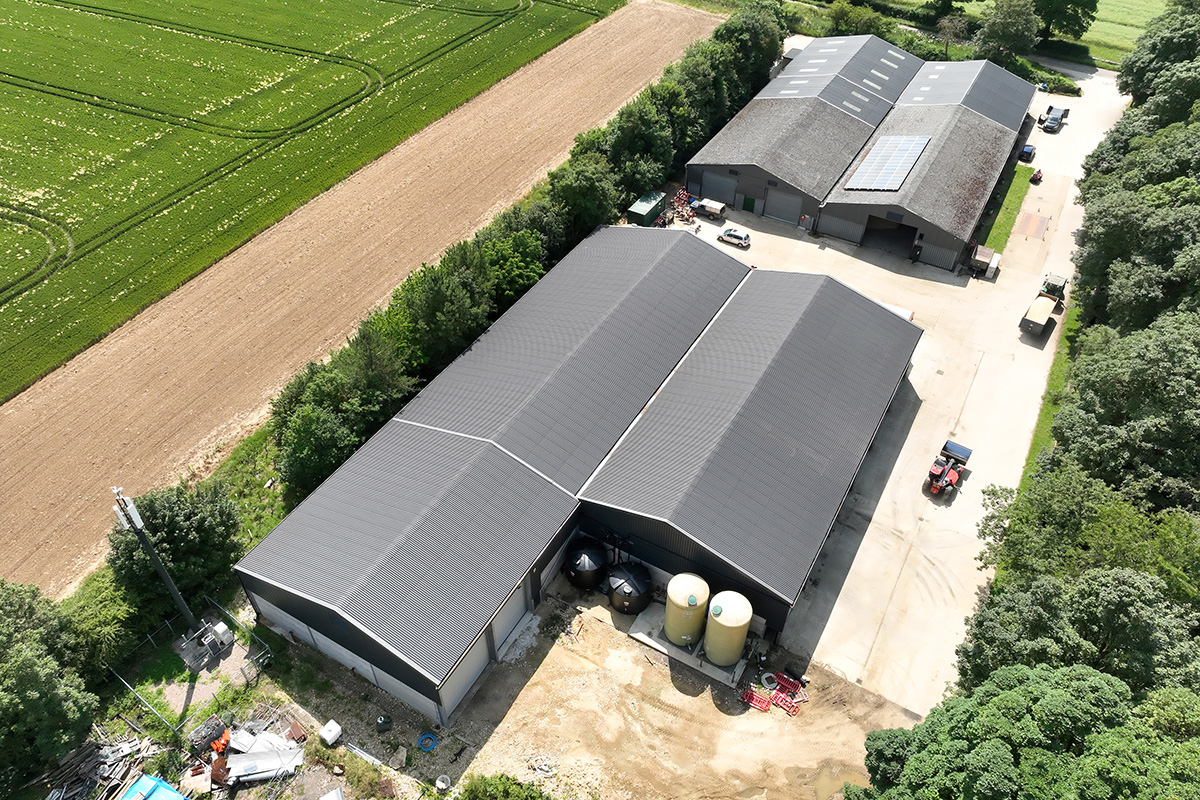

The Newbottle Estate Grain Store is a marvel of engineering and design, consisting of a primary and secondary steel framed building, crafted to meet the high capacity storage needs of the estate. The portal framed twin-span construction offers a robust and versatile solution for grain storage and processing.
Main Building
- Capacity: 3,200 tonnes
- Dimensions: 54.860m length across 9 x 6.096m bays, with a width of 18.750m and height of 6.70m
- Features: The main building boasts an internal, removable concrete wall system, designed to offer unparalleled flexibility in storing multiple grain types simultaneously, ensuring optimal use of space and facilitating easy access for handling and distribution.
Secondary Building
- Capacity: 1,000 tonnes
- Dimensions: 36.570m length across 6 x 6.096m bays, with a width of 18.280m and height of 6.7m
- Specialisation: Dedicated to enhancing the estate’s grain processing capabilities, the secondary building incorporates a grain drier in one of its bays, streamlining the post-harvest process and ensuring the grain’s quality and longevity.
Construction Features
Both buildings are crowned with P6 profile fibre cement roofs, known for their durability and weather resistance, crucial for the protection of stored grain. The sides of the buildings are adorned with 0.5mm plastisol coated metal vertical cladding, offering a sleek appearance while ensuring long-term resilience against the elements. Galvanized steel gutters complement the structures, providing efficient water drainage and further protecting the buildings’ integrity. The incorporation of 4.0m high and 3.0m high 150mm thick concrete panels reinforces the structures, safeguarding the stored commodities against external pressures and enhancing security.
The Client
Newbottle Estate stands as a testament to the synergy between agricultural tradition and innovation. With its roots deeply embedded in the Northamptonshire countryside, the estate has evolved to become a leader in sustainable farming and land management. Their commitment to excellence and sustainability is evident in every facet of their operation, from crop cultivation to livestock management and beyond. The completion of the Newbottle Estate Steel Frame Grain Store project with March Projects is a further step in their mission to advance agricultural practices, ensuring efficiency, sustainability and economic viability for generations to come.
For more information about the Newbottle Estate and their visionary approach to agriculture, please visit their website.
This project is a hallmark of March Projects’ dedication to delivering high-quality, bespoke solutions that meet the precise needs of our clients. The Newbottle Estate Steel Frame Grain Store not only highlights our capability to undertake and excel in complex agricultural infrastructure projects but also reflects our broader commitment to innovation, sustainability and client satisfaction.
